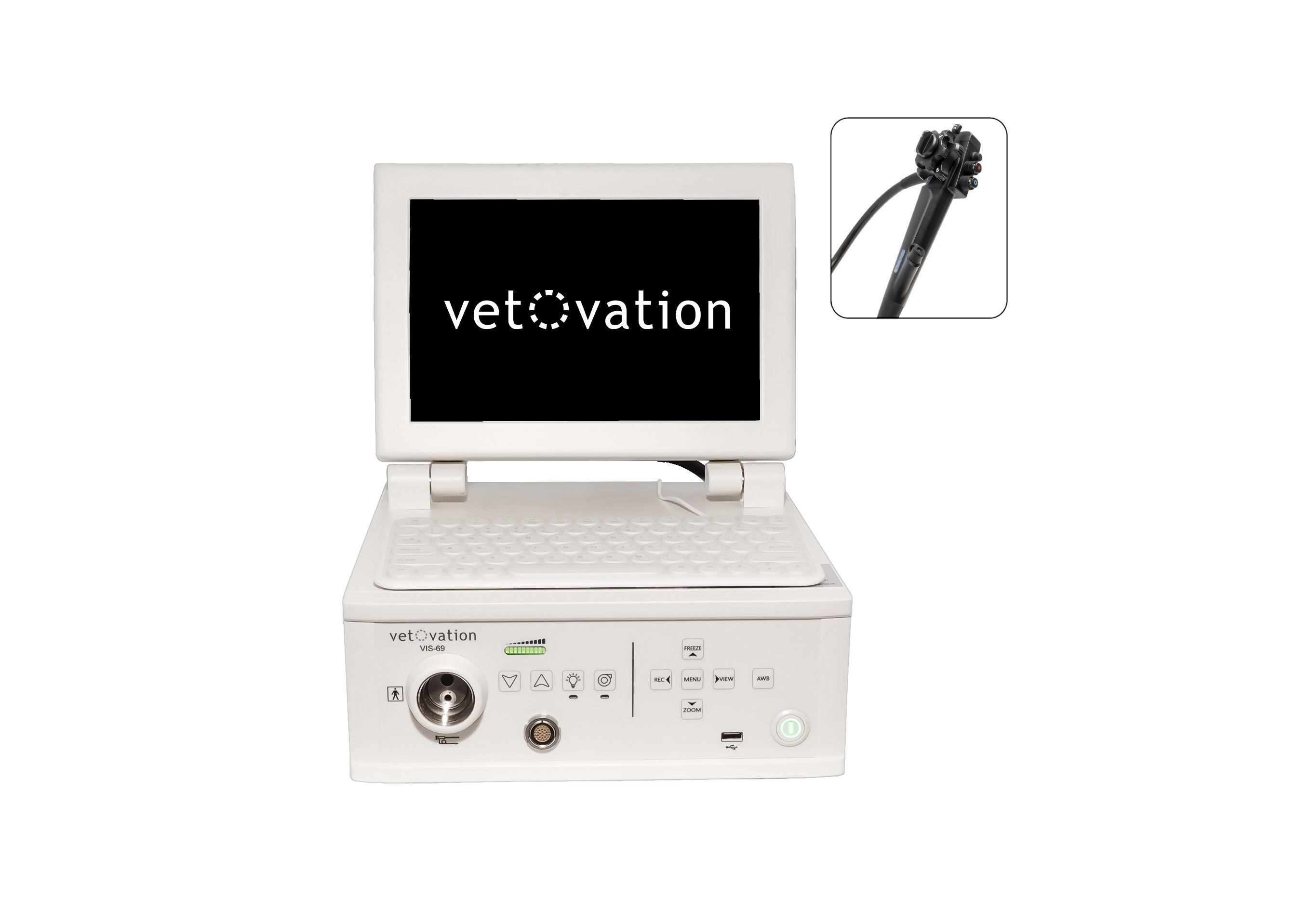

Portable Flexible Gastroscope System + HD Flip-Top Monitor

The vetOvation Flexible Gastroscope System for veterinary upper gastrointestinal foreign body removal and biopsy.  Specifically designed for veterinary use.

• Compact design, integrated with processor and LED light source
• High definition system, CMOS technology with 1280 resolution, frame rate as 60fp/s
• Fiberoptic (chip on a stick) enables outstanding images during gastroscopy

The vetOvation Flexible Gastroscope System consists of the following components:

• Processor with integrated LED Light Source
• Flexible gastroscope–Your choice of gastroscope, equine endoscope or bronchoscope
• HD video monitor–Your choice of a flip top HD medical-grade monitor attached to the processor or a separate UHD 4K monitor with stand
• Instrument set which includes:
  • Biopsy Instrument x 2
  • Rat-tooth Instrument x 2
  • Snare x 2
  • Cleaning Brush X 2
  • TeeZyme Cleaning Sponges x 5
• OPTIONAL portable stainless steel video tower with adjustable shelves
• OPTIONAL accessories to use the processor and light source with rigid endoscopes

Technical details on equipment:

• LED Light Source
  • Bulb 40W LED lamp
  • Color temperature 5300K ± 500K
  • Average bulb life 35,000 hours
  • Brightness adjustment – optical aperture control
  • Air pump – barometric adjustment: Low to High
  • Voltage 220V
  • Frequency 50Hz

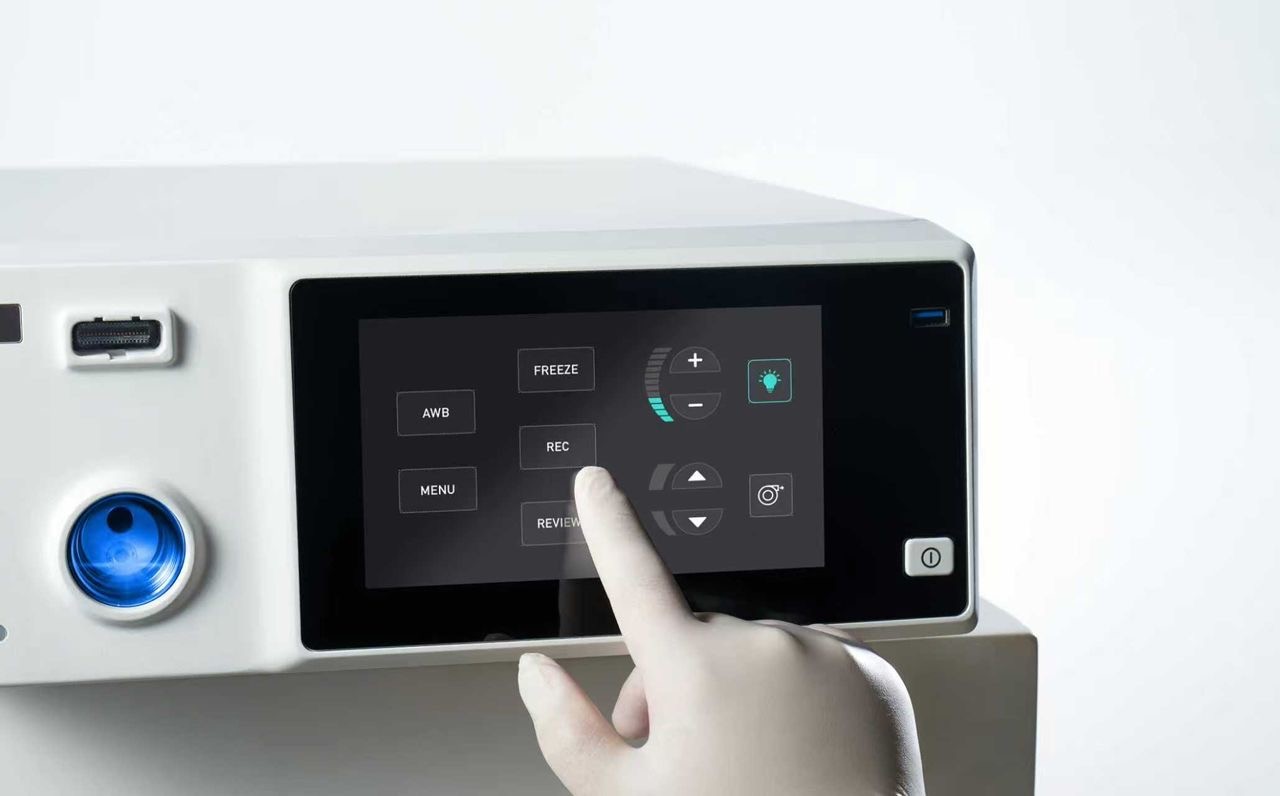

• Image Processor
  • Video signal outputs: DVI, HDMI
  • Image capture – still images and video recording permanently stored to standard SD card
  • Image enhancement – E-stressed mucosal morphology or profile, to increase the sharpness of endoscopic images.  Profile enhance level has four adjustable settings depending on anatomy .
  • Adjustable image gain control – adjusts image brightness
  • Color tone adjustment – R B adjustment ± 50 steps
  • Brightness control – Yes- adjustment ± 50 steps
  • White balance – Press and release button to automatically white balance scope
  • Voltage 220V AC
  • Frequency 50Hz
• Gastroscope
  • 1500 mm total working length
  • 8.0 mm distal end outer diameter 8.0mm insertion tube outer diameter
  • 2.8mm instrument channel inner diameter
  • 3 – 100mm depth of field view
  • 120 degree field of view
  • Angulation range of bending section Up/down: 210° / 90° Left/Right: 100° / 100°
• Equine Endoscope
  • 3300 mm total working length
  • 12.9 mm distal end outer diameter 12.9mm insertion tube outer diameter
  • 3.7mm instrument channel inner diameter
  • 3 – 100mm depth of field view
  • 145 degree field of view
  • Angulation range of bending section Up/down: 180°/180°  Left/Right: 160° / 160°
• Bronchoscope
  • 1000 mm total working length
  • 5.8 mm distal end outer diameter 5.6mm insertion tube outer diameter
  • 2.0mm instrument channel inner diameter
  • 3 – 50mm depth of field view
  • 120 degree field of view
  • Angulation range of bending section Up/down: 180° / 130°

Everything your practice needs to perform endoscopy

Optional On-Site training & Installation Available

Please call us to answer any questions or to the schedule a demonstration–919-247-0328
